SKU: AP-HIA.500.500.H50-OG

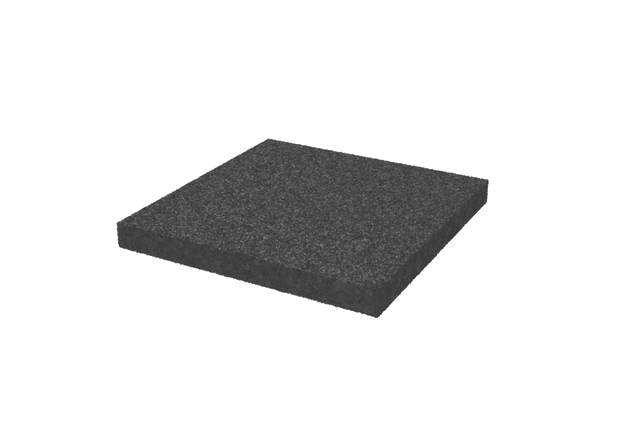

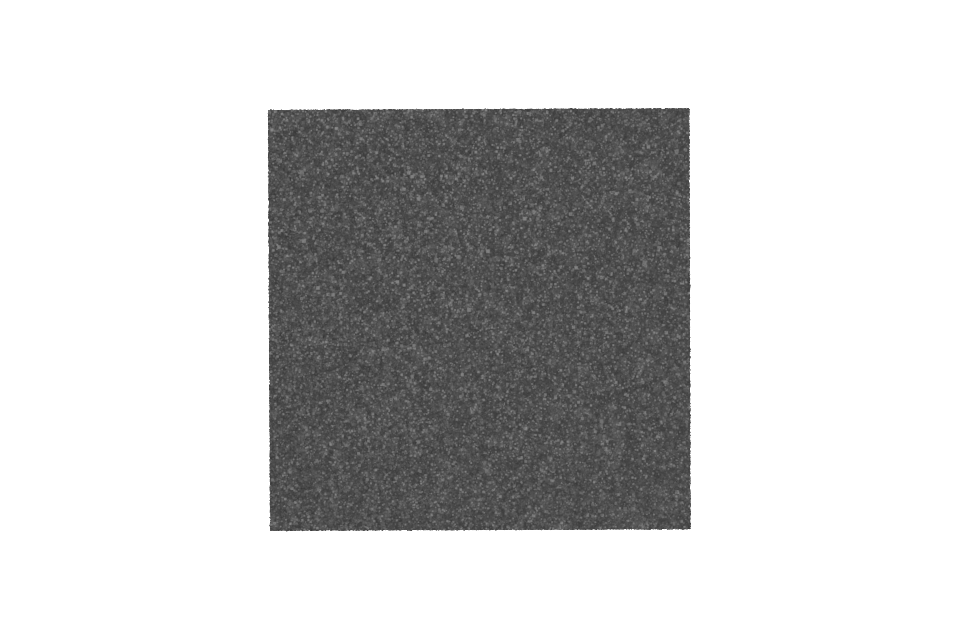

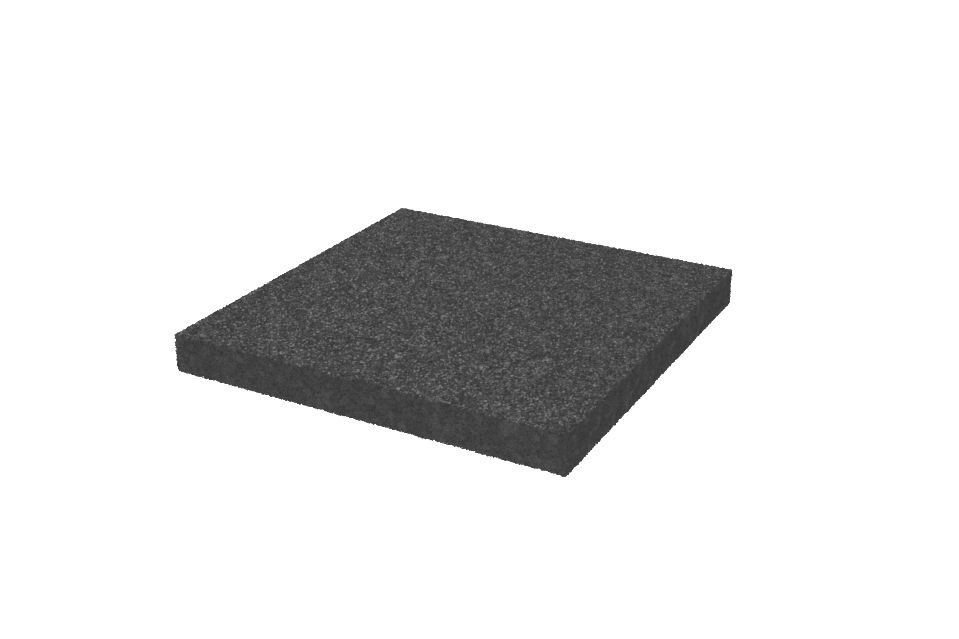

Compensation plate 500 x 500 x 50 mm without handle hole

Compensation plate 500 x 500 x 50 mm without handle hole

Prices are only visible for distributors. Are you already registered? Then please log in, if not, then fill out the registration form and we will contact you soon.

Create account Login
  • Free of harmful substances
  • elasticity
  • Oil and environmental resistant
View full details

Description

The compensation plate AP-HIA.500.500.H50-OG (without handle hole) was developed by us for all road scissor and 4-post lifts with wheel alignment module. The plate serves as a leveler in the lift track when the wheel alignment rotating plate is temporarily removed to prevent wear. It also replaces the original, expensive metal compensation plates. Advantage: Noise is avoided when driving over, and there is no disturbing background noise when checking the axle and steering play, which makes error analysis more difficult. The service life of the roadway lift is also extended because its coating cannot be damaged by the sharp edges of the metal compensation plates. Corrosion, which is often promoted by (salt) water, can be reliably prevented in this way.

The compensation plates are made of petrol and oil-resistant, high-density rubber granules. Thanks to their high specific weight, the panels lie firmly in place without the need for additional fastening. A handle embedded in the edge makes handling the compensation plates easier. With this, the plates, which fit precisely into the road recess, can be easily removed from the lift and hung on a wall to save space.

We offer our compensation plates in five (seven) other sizes for your roadway lift (see overview: Compensation plates). If the right size is not included, we will make desired sizes for you upon request.

More information

Weight :4.3 kg
Delivery time : 2-3 Days
Suitable for : 4-post lifts|scissor lifts

Free of harmful substances

BÖCK products are produced in accordance with the “REACH” regulation issued by the European Union and are therefore free of harmful substances. We ensure that when using our products, people are protected from health risks and the environment is not polluted by pollutants.

elasticity

Due to the heavy weight of motor vehicles, our rubber products have to withstand enormous pressure. A sign of the best quality are the good elastic properties of our products, which always return to their original shape.

Oil and environmental resistant

Our rubber pads, blocks and plates are exposed to high levels of contamination in the workshops. The materials of our products are therefore designed to be oil, salt, cold and heat resistant.

Shore hardness

Based on our experience, we know which Shore hardness is necessary to ensure that no damage occurs to the vehicle when lifting a vehicle. However, upon customer request, it is also possible to adapt the rubber hardness to specific requirements.
