Boeck  |  SKU: ROT001

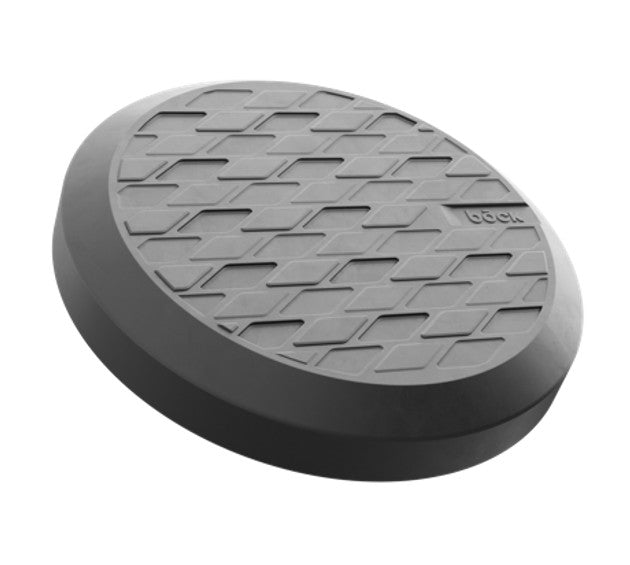

Rubber pad with steel plate – heavy-duty version Suitable for ROTARY / RAVAGLIOLI / HERRMANN / ATH-HEINL lifts Ø 123 mm

suitable for these lifts
ROTARY | RAVAGLIOLI | HERRMANN | ATH-HEINL
icon_technical_drawing_of_product
outer diameter
ø = 123 mm
inner diameter
a = 112 mm
inner height
d = 8 mm
height
h = 20 mm
weight
0.31 kg
reinforced with metal plate

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

This specially developed rubber pad for high-capacity lifts combines sophisticated design with maximum functionality – for secure hold, long-lasting performance, and easy handling in the workshop.

Integrated metal plate for a firm fit without slipping

The integrated steel plate ensures a stable connection between the rubber pad and the support plate – even under heavy loads. No slipping, no twisting – ideal for use on two-post lifts with high load capacities .

Suitable for vehicles with sharp folds

The high-quality rubber compound used is not only abrasion-resistant and dimensionally stable, but also designed to reliably accommodate car bodies with sharp folds – without damaging the vehicle.

Optimized underside for easy installation

The special geometry on the underside enables quick, precise placement on the support plate – saving time during installation and conversion included .

Technical features:

  • Material: Heavy-duty rubber with inserted steel plate
  • Application: Heavy-duty vehicles, vans, SUVs
  • Special features: Non-slip, fold-compatible, easy to install
  • Compatibility: For common support plates from lifting platform manufacturers

K

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.

Find the Right Rubber Pad

Check the Dimensions Before Ordering

Compare the technical drawing above and the dimensions with those of your old rubber pad to ensure a proper fit. For two-post lifts, the diameter and the height of the support plate, as well as, if applicable, the spacing of the bolt holes, are crucial. For rubber plates, in addition to the external dimensions, the spacing of the holes should be checked. Bolt holes are always measured from center to center.
