Boeck  |  SKU: 17202301EMB

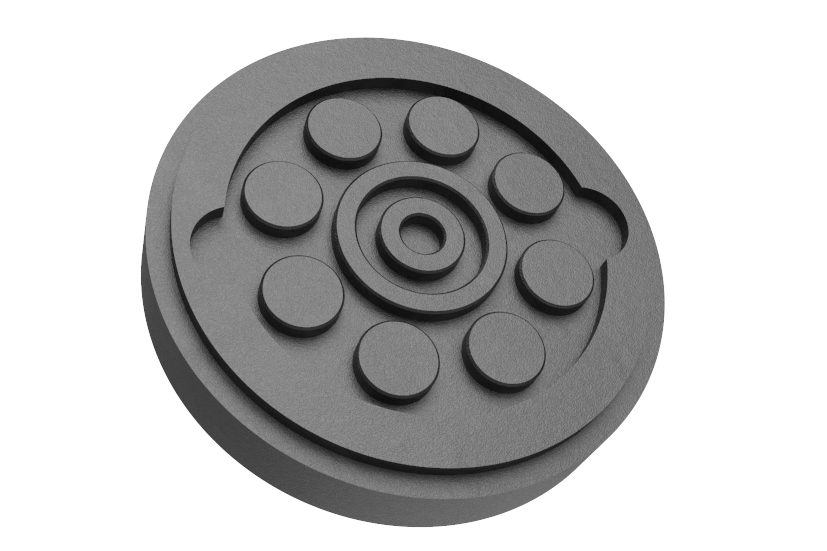

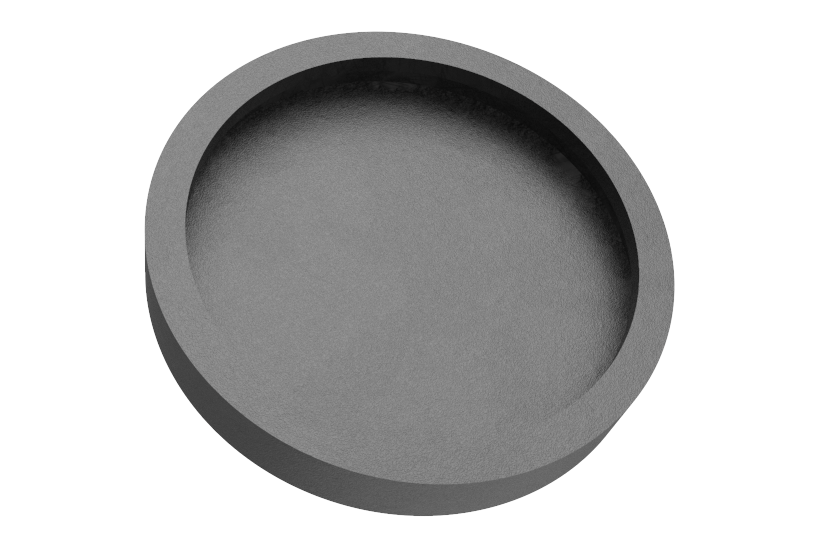

Rubber pad with steel plate suitable for MAHA lifts diameter 120 mm

suitable for these lifts
MAHA | SLIFT
icon_technical_drawing_of_product
outer diameter
ø = 120 mm
inner diameter
a = 110 mm
inner height
d = 8 mm
height
h = 22 mm
weight
0.26 kg
reinforced with metal plate
additional info
zum Stülpen (ohne Verschraubung)

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

Die richtige Gummiauflage finden

Maße vor der Bestellung prüfen

Vergleichen Sie die obige technische Zeichnung und die Abmessungen mit den Maßen Ihrer alten Gummiauflage, um sicherzustellen, dass sie passt. Bei 2-Säulen-Hebebühnen sind der Durchmesser und die Höhe des Tragtellers sowie, falls vorhanden, der Abstand der Verschraubungslöcher entscheidend. Bei Gummiplatten sollten neben den Außenmaßen auch die Lochabstände geprüft werden. Verschraubungslöcher werden immer von Lochmitte zu Lochmitte gemessen.

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.

The rubber pad 17202301EMB was specifically designed for new MAHA and SLIFT lifts of the MASTAR, SOLIST X and SQUARE X series. It is identical in construction to rubber pad 17202301MET, but differs in one essential point: this rubber pad has no screw holes and is fitted exclusively over the support plate. By eliminating screw fastenings, no metallic contact is created between the lift and the vehicle. This provides an important safety measure when lifting electric vehicles and meets modern requirements for insulating lifting techniques.


Maximum Safety without Screwing

Since electric vehicles impose special requirements on the lifting process, the rubber pad has been engineered so that no conductive connection exists between the vehicle and the lift. The absence of screw holes ensures that the pad functions without metal contact, thereby minimizing potential risks. This solution is standard on new MAHA and SLIFT lifts.


Perfect Fit through a Precision Slip‑On Design

The rubber pad features a round shape and is slipped directly over the lift’s support plate. The product’s design and the hardness of the rubber compound are chosen so that the pad can be easily slipped on and then fits securely and form‑fittingly on the support plate without additional fastenings. Its stable shape ensures a firm hold even under high loads and reduces the risk of slipping.

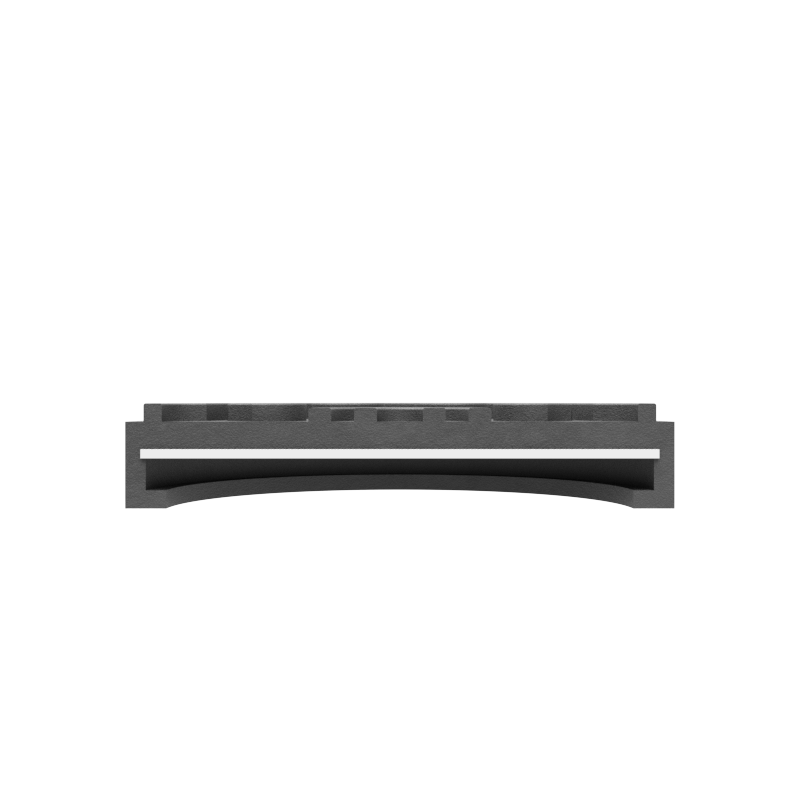

Durable Construction with a Vulcanized Metal Plate

Like model 17202301MET, this rubber pad is also equipped with a vulcanized metal plate. This reinforcement makes the pad particularly resistant to mechanical stress and ensures an even distribution of forces. The risk of premature wear is minimized, thereby extending the product’s lifespan.


High‑Quality Rubber Compound for Extreme Loads

The Böck High‑Performance‑Rubber compound used is designed for long durability. It minimizes wear and absorbs the shear forces generated during lifting. Thanks to the memory effect, the rubber pad adapts to the support plate under load and returns to its original shape after unloading, contributing to lasting functionality.


Precision Fit for Modern MAHA and SLIFT Lifts

This rubber pad was specifically developed for the latest MAHA and SLIFT lift models – MASTAR, SOLIST X and SQUARE X. Its exact construction ensures a perfect fit on the support plate and guarantees secure vehicle support. Direct replacement with original parts is seamlessly possible.


Engineered for Demanding Workshop Conditions

Workshops that regularly lift electric vehicles benefit from this advanced solution. Rubber pad 17202301EMB is ideal for operations with high vehicle throughput, where lifts are used intensively. Its robust construction ensures a long service life and reliable performance in continuous operation.


Environmentally Friendly and Manufactured to the Highest Standards

This product is PFAS‑free and is manufactured in accordance with the strict requirements of the REACH Regulation. Regular testing guarantees consistently high quality. The rubber compound is sourced from renowned manufacturers and meets the highest environmental and health standards.
