Boeck  |  SKU: GK40/12

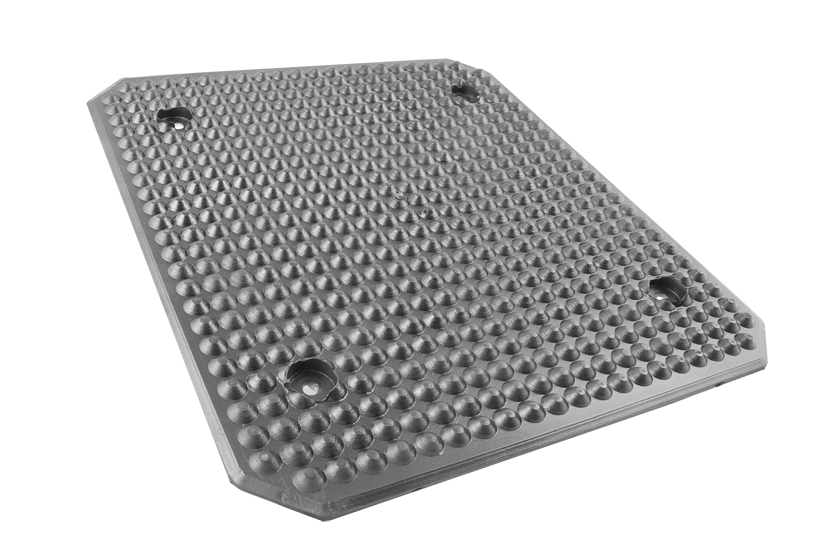

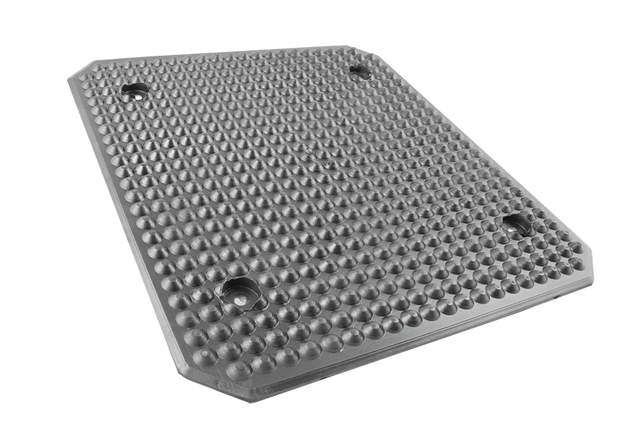

Rubber plate new version suitable for SLIFT IME dimensions 400 x 350 x 12 mm

suitable for these lifts
IME | SLIFT
icon_technical_drawing_of_product
base area
l x w = 400 x 350 mm
hole spacing
b = 255 mm
hole spacing
c = 240 mm
height
h = 12 mm
weight
3.05 kg
reinforced with metal plate

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

This rubber pad is specially designed for underfloor post lifts from SLIFT, IME, and MAHA with flat beams or driveways. Its low-profile design without a surrounding flange allows vehicles to drive on easily and facilitates lifting low-clearance vehicles.

Made from durable, long-lasting rubber, the pad provides a safe and non-slip surface. It allows direct vehicle contact on the rubber pad and ensures stable embedding of the vehicle during lifting.

Optimal complement with rubber blocks

For maximum workshop flexibility, it is recommended to use matching rubber blocks with heights between 40 mm and 80 mm. They have a precisely matched underside that fits perfectly into the negative profile of the rubber pad, providing a stable, non-slip seat without shifting during lifting.

Product Height Application

Front view of a black, square rubber block (item GK12/8-OL) for car lifts.

Rubber Block GK12/8-OL

 80 mm Standard vehicles, more clearance

Front view of a black, square rubber block (item GK12/4-OL) for car lifts.

Rubber Block GK12/4

 40 mm Lowered vehicles

For specific vehicle types or special requirements, rubber blocks in additional heights and sizes can also be used. A large selection can be found in our rubber blocks product overview.

Important compatibility note

Please check the hole distances of your existing support plate before ordering. For this version, the center-to-center distance is 255 mm along the length and 240 mm along the width.

This rubber pad is the newer version and differs in the hole pattern from the pads for older lift models. Confusion may cause fitting issues, so verifying dimensions before ordering is mandatory.

Product advantages at a glance

  • Ultra-low profile, ideal for low vehicles
  • No surrounding flange for easy driving on
  • Durable, long-lasting rubber
  • Direct vehicle contact possible
  • Perfect complement with interlocking rubber blocks
  • Compatible with SLIFT, IME, and MAHA lifts

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.

Find the Right Rubber Pad

Check the Dimensions Before Ordering

Compare the technical drawing above and the dimensions with those of your old rubber pad to ensure a proper fit. For two-post lifts, the diameter and the height of the support plate, as well as, if applicable, the spacing of the bolt holes, are crucial. For rubber plates, in addition to the external dimensions, the spacing of the holes should be checked. Bolt holes are always measured from center to center.
